Engineering Services / HERSS® · High Efficiency Piston Rod Sealing & Scraping System
HERSS® · High Efficiency Piston Rod Sealing & Scraping System

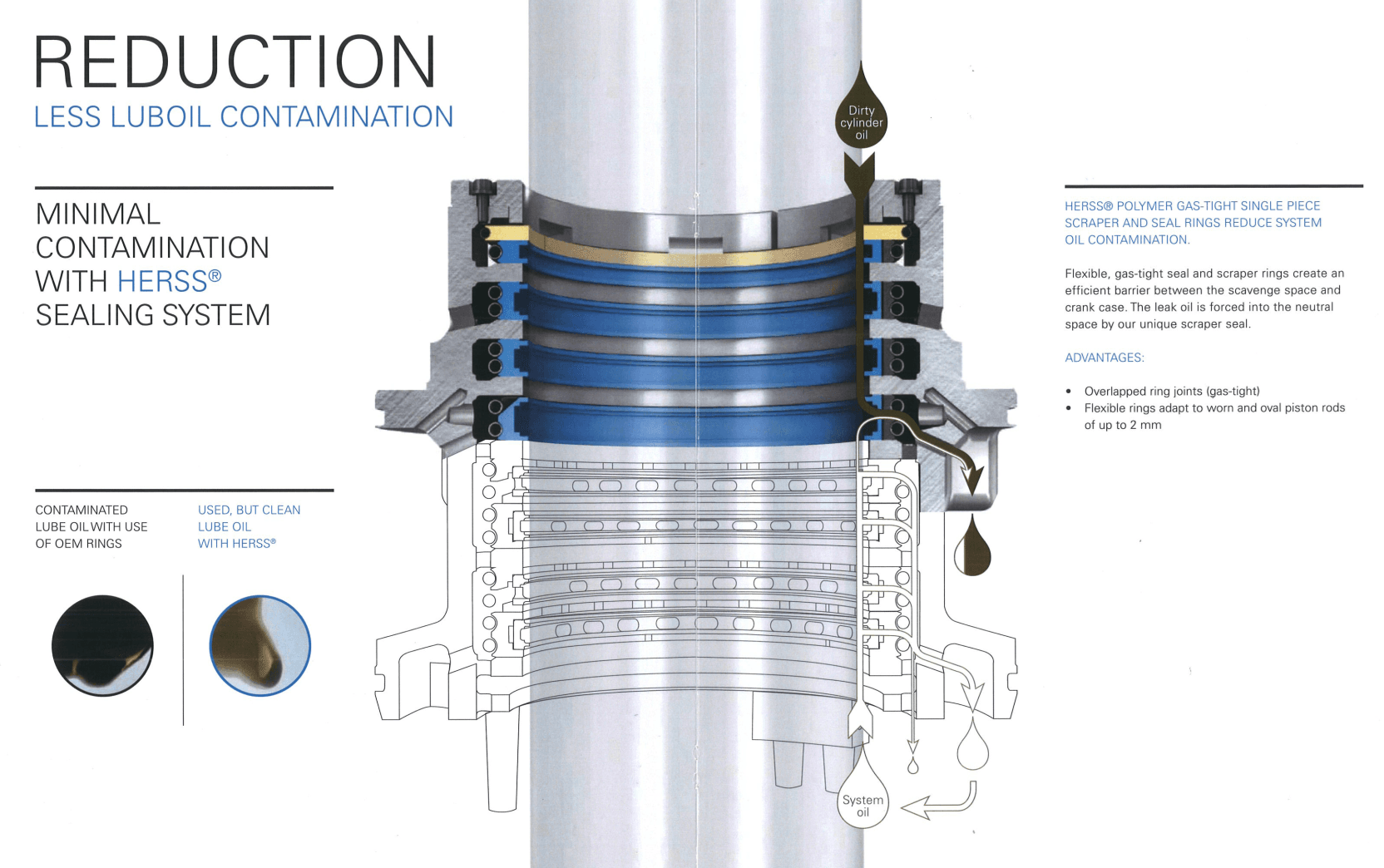

HERSS® is a high-efficiency piston rod sealing and scraping system for 2-stroke marine diesel engines, designed to reduce system oil losses, minimize piston rod wear and improve separation between contaminated cylinder oil and clean crankcase system oil.
SERVICE OVERVIEW
Reduce system oil losses through high-efficiency piston rod sealing and scraping technology.

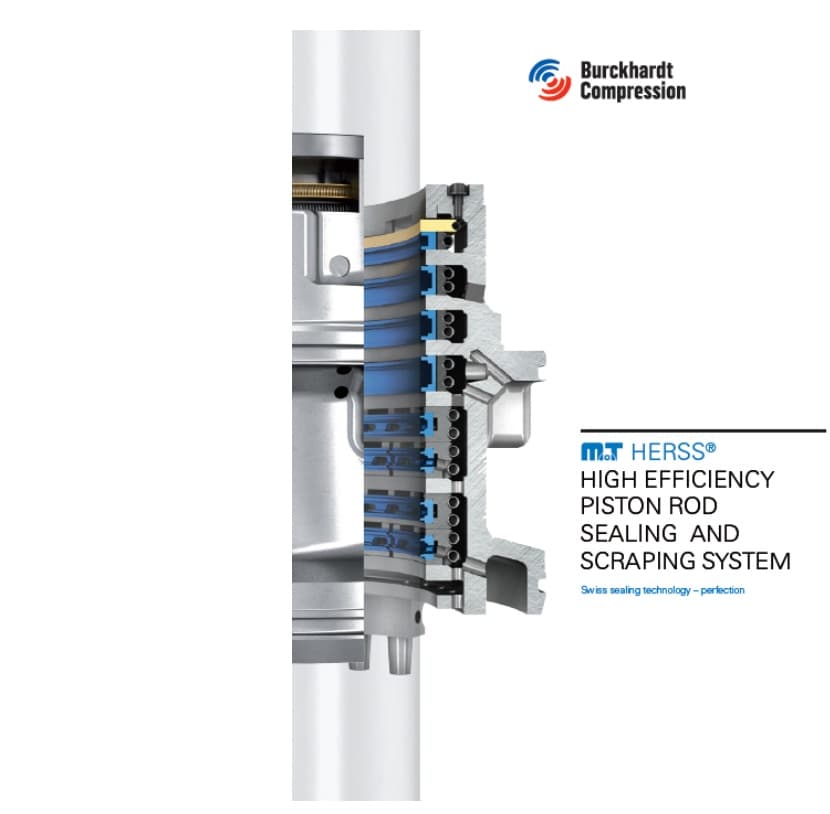

HERSS is a High Efficiency Piston Rod Sealing and Scraping System designed to improve the performance of conventional piston rod stuffing boxes in 2-stroke marine engines.

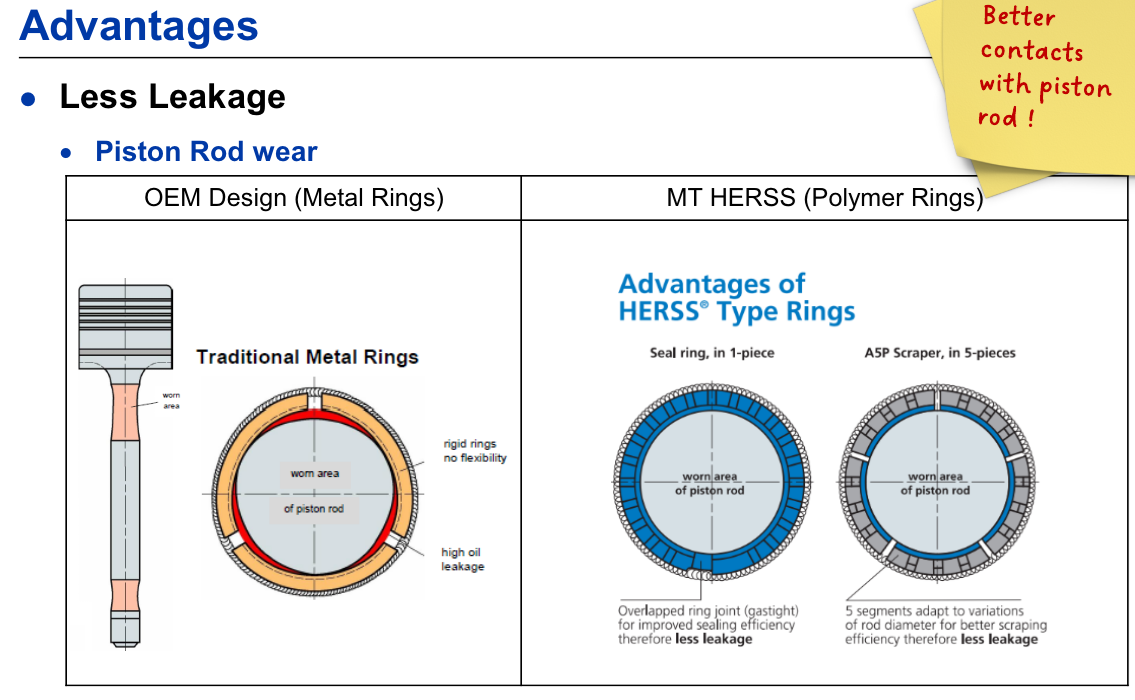

The system uses an optimized polymer sealing and scraper ring arrangement to maintain effective contact with the piston rod, including worn piston rod surfaces, helping reduce oil leakage and unnecessary system oil consumption.

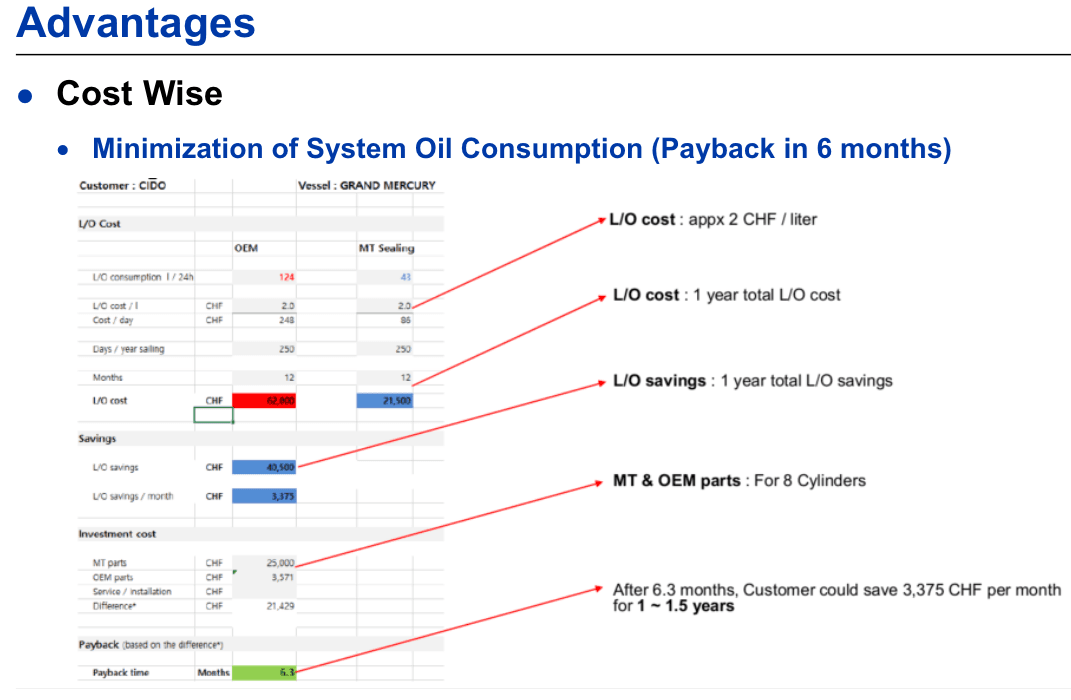

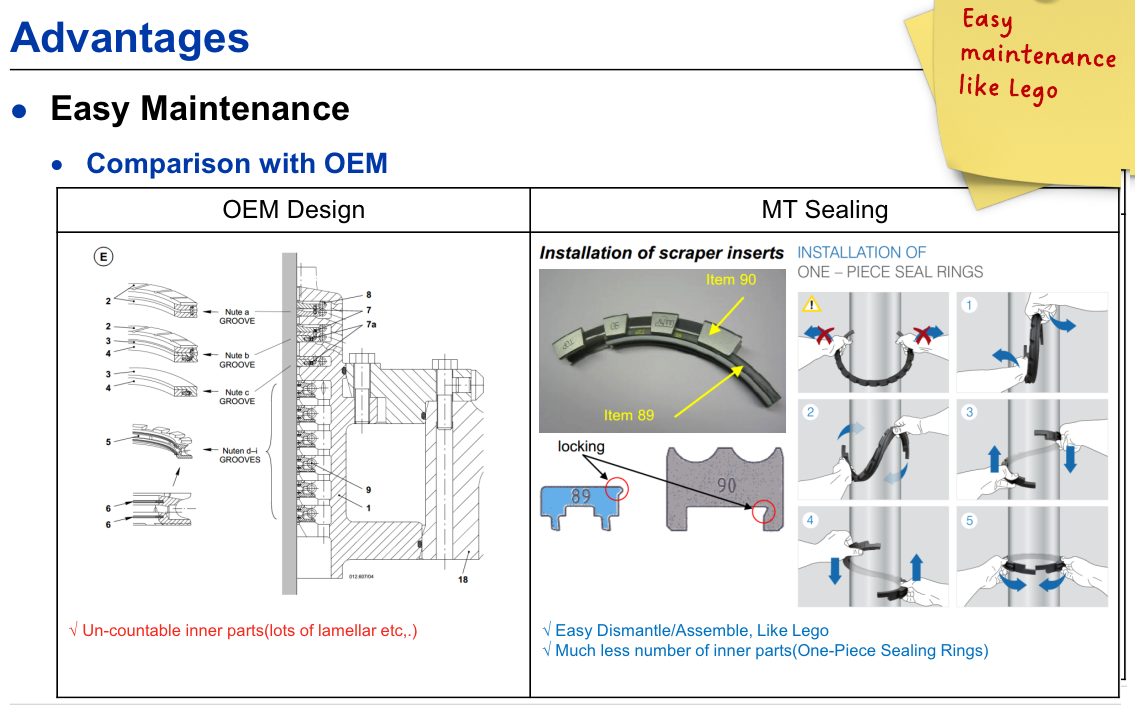

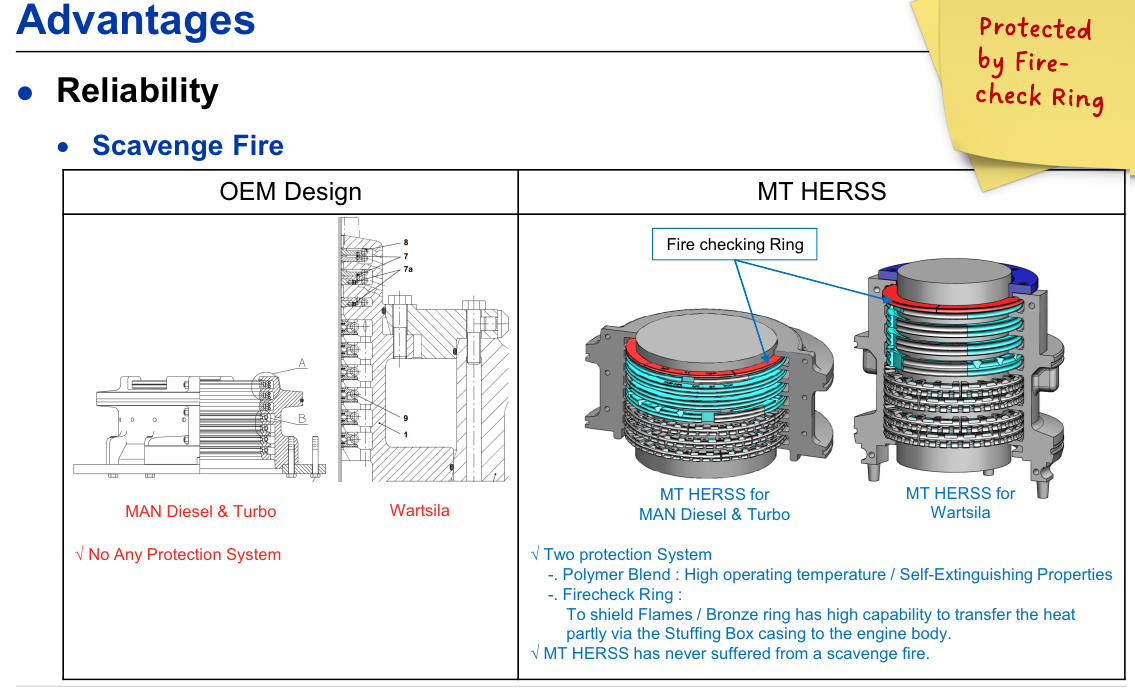

According to the supplied HERSS technical material, system oil consumption may be reduced by approximately 60–80% compared with the original arrangement, depending on operating conditions and piston rod condition. The system is particularly positioned as an effective solution where excessive oil consumption is associated with significant piston rod wear. HERSS also provides enhanced protection against scavenge fire and is designed for easier maintenance compared with conventional multi-component stuffing box arrangements.
VISUAL REFERENCE
Project images, technical details and application views.
SCOPE OF SERVICE
From piston rod condition assessment to measurable system oil savings.
✓
Piston Rod Condition Review
✓
System Oil Consumption Assessment
✓
Oil Contamination Assessment
✓
HERSS® Application Review
✓
Worn Piston Rod Solution Assessment
✓
System Oil Saving Analysis
✓
Piston Rod Protection
✓
Economic Benefit Analysis
✓
Supply & Technical Support
WORKING PROCESS
Review engine type, stuffing box arrangement, piston rod condition and wear history.
ENGINE & PISTON ROD REVIEW
Define baseline and acceptance criteria.
SYSTEM OIL BASELINE
Establish current system oil consumption in L/day and annual lubricant cost.
HERSS® APPLICATION ASSESSMENT
Evaluate sealing/scraping requirements and HERSS® suitability, particularly for worn piston rod conditions.
SAVING ANALYSIS
Estimate potential system oil reduction and annual economic benefit.
SUPPLY & INSTALLATION
Supply the applicable HERSS® system and provide technical installation support.
PERFORMANCE VERIFICATION
Compare before/after system oil consumption and monitor piston rod/stuffing box condition.
EXPECTED VALUE
High System Oil Consumption + Worn Piston Rod?
DELIVERABLES
Documents that can be used for decisions, execution and verification.
01Piston Rod Condition Assessment
02System Oil Consumption Analysis
03HERSS® Application Proposal
04System Oil Saving Estimate
05Annual Economic Benefit
06Payback Analysis
07HERSS® Supply & Technical Support
08Before / After Performance Review
TYPICAL APPLICATIONS
Applicable to
Excessive system oil consumptionWorn piston rodsIncreasing piston rod wearPoor stuffing box scraping performanceExcessive system oil loss to scavenge spaceCylinder oil contamination of crankcase system oilFrequent stuffing box maintenanceHigh lubricant operating costPiston rod replacement / life-extension evaluationMain engine overhaul and retrofit projectsSTART A PROJECT
