LED Lighting retrofit kit
Reducting Lighting power 44% saving & Extending lifetime 10 times. LED Lighting · Marine Retrofit & Energy Saving Solution
SERVICE OVERVIEW
Upgrade existing ship lighting without replacing the complete fixture.
Many existing vessels continue to operate conventional fluorescent lighting systems with relatively high power consumption, short replacement intervals and recurring ballast and lamp maintenance.

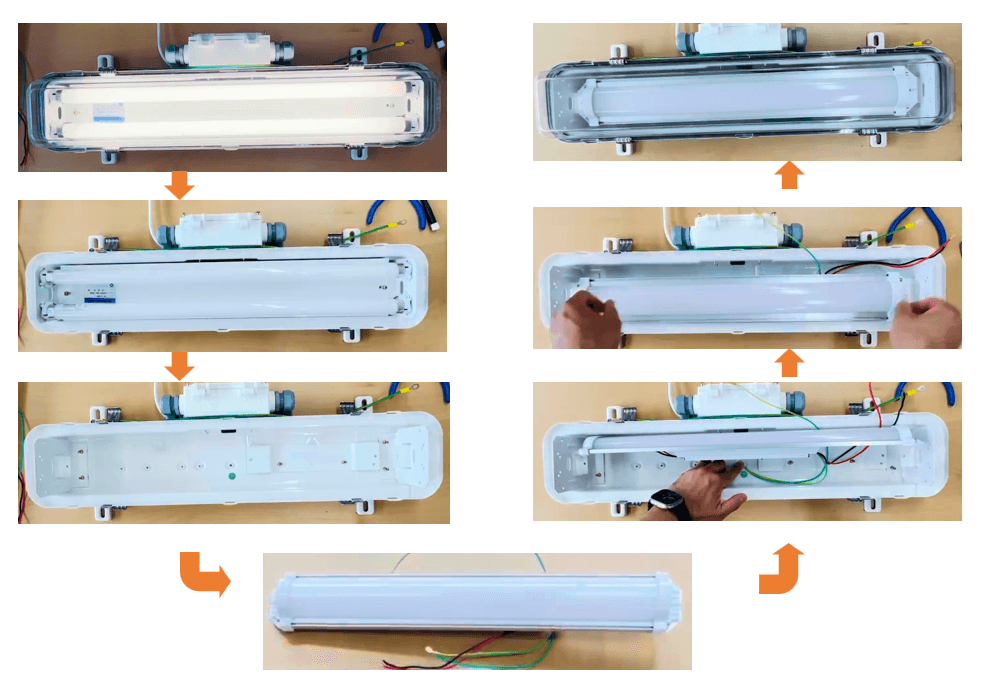

The LED Repair Kit replaces the internal fluorescent lamp and ballast arrangement with a dedicated marine LED module while retaining the existing lighting fixture where applicable.

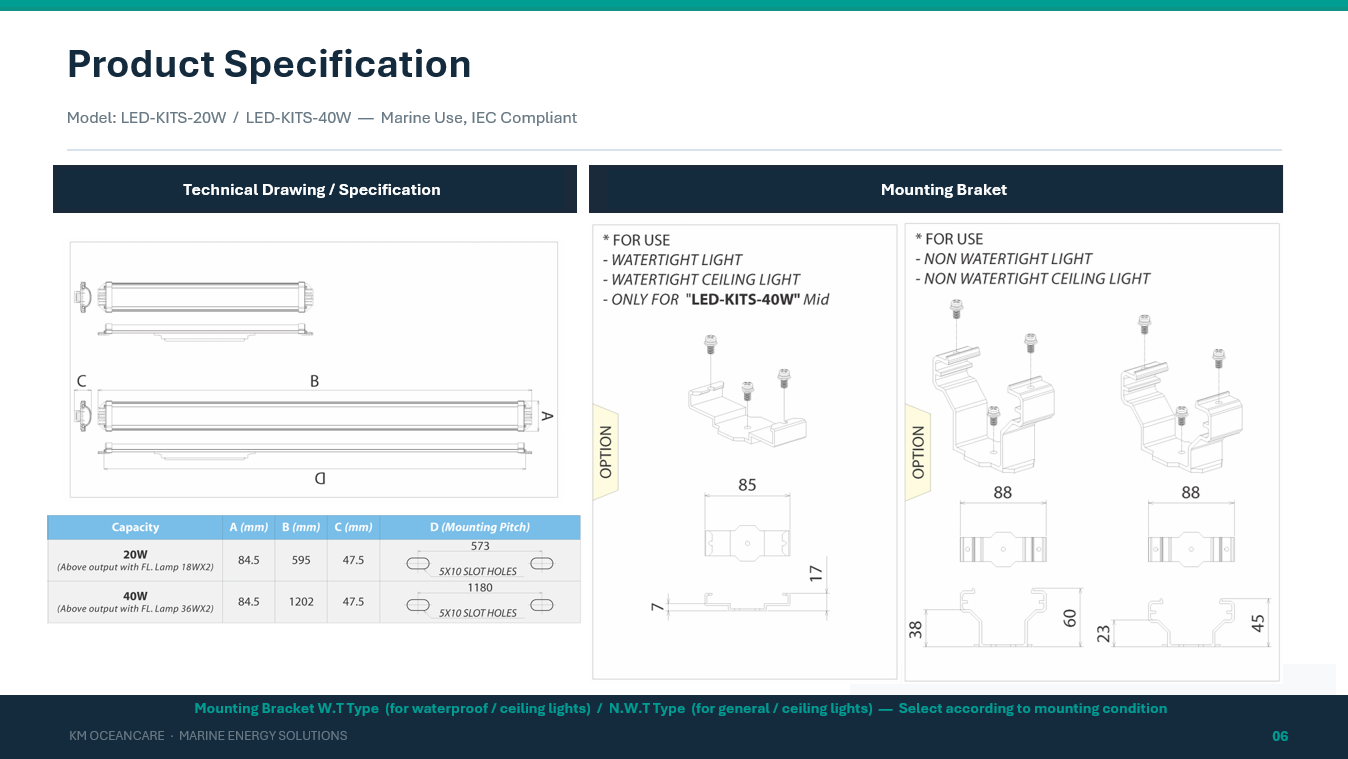

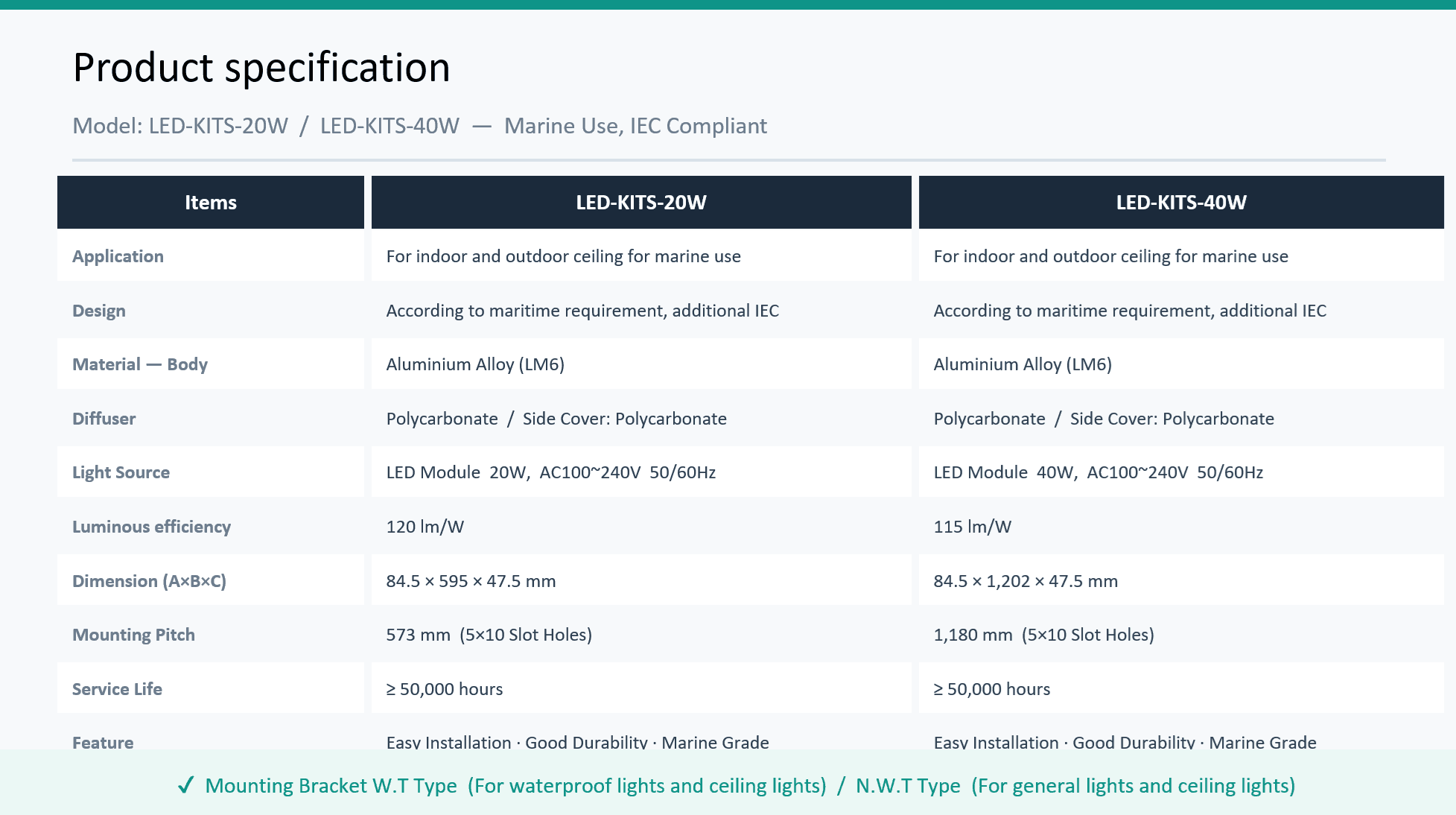

The available 20W Repair Kit replaces FL-2×18W, while the 40W Repair Kit replaces FL-2×36W fluorescent arrangements. The supplied material describes the system as a drop-in replacement that does not require additional wiring work.
With a rated service life of ≥50,000 hours, reduced electrical load and simplified maintenance, the solution provides both technical and economic benefits throughout the vessel's operating life.
VISUAL REFERENCE
Project images, technical details and application views.
SCOPE OF SERVICE
From onboard lighting assessment to retrofit and economic benefit analysis.
✓
Existing Lighting Survey
✓
LED Retrofit Applicability Review
✓
Power Saving Assessment
✓
Fuel Saving Analysis
✓
CO₂ Reduction Assessment
✓
Economic Benefit Analysis
✓
Repair Kit Supply
✓
Retrofit & Installation Support
WORKING PROCESS
Clear stages, responsibilities and deliverables.
Review
Describe the working process.
EXPECTED VALUE
Convert lighting efficiency into measurable vessel operating savings.
Reduce lighting demand on the vessel’s electrical generation system.
Lower auxiliary-engine generator load and associated fuel consumption.
Reduce indirect CO₂ emissions through lower onboard electrical generation.
Reduce fluorescent lamp replacement and eliminate ballast-related maintenance.
Longer service life reduces repetitive onboard lighting maintenance.
≥50,000-hour LED service life significantly extends replacement intervals.
Upgrade existing suitable fixtures instead of replacing the complete lighting assembly.
Evaluate retrofit investment against combined energy, fuel and maintenance savings.
DELIVERABLES
Everything required from retrofit planning to economic evaluation.
01Vessel Lighting Survey
02LED Conversion List
03Energy Saving Calculation
04Fuel & CO₂ Reduction Analysis
05Annual Economic Benefit
06Payback Analysis
07Product Supply
08Installation Support
TYPICAL APPLICATIONS
Applicable to
Existing vessels using fluorescent lightingFL-2×18W / FL-2×36W replacementEngine-room and machinery-space lightingAccommodation and common-area lightingDeck and waterproof lighting applicationsVessels with high lighting maintenance workloadEnergy-efficiency retrofit projectsAuxiliary generator load reduction projectsVessel operating-cost reduction programsCO₂ reduction and energy-management projectsSTART A PROJECT
